冷冻干燥机 L-200
首次配备 Infinite-Control™ 的冷冻干燥机

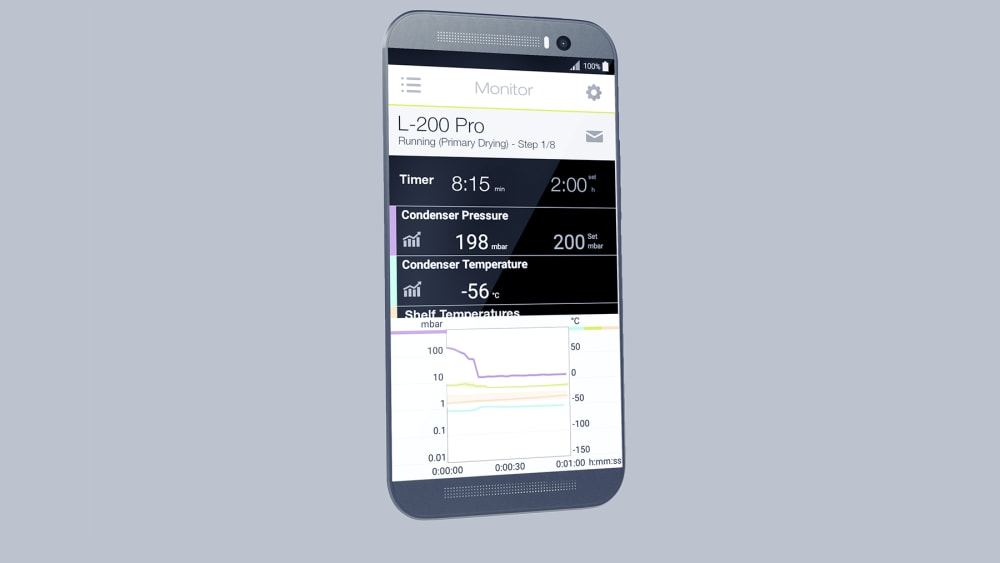

作为首次配备 Infinite-Control™ 的冷冻干燥机，这款紧凑型冷冻干燥机 L-200 可提供无与伦比的自动化升华。可实时轻松创建和运行方法、记录数据、记录图表，并可使用移动设备随时随地互动。
特性
- BUCHI 提供应用支持、培训、预防性维护和 IQ/OQ 文档
- 温度差异（需选配产品温度传感器）可以用来测定终点。

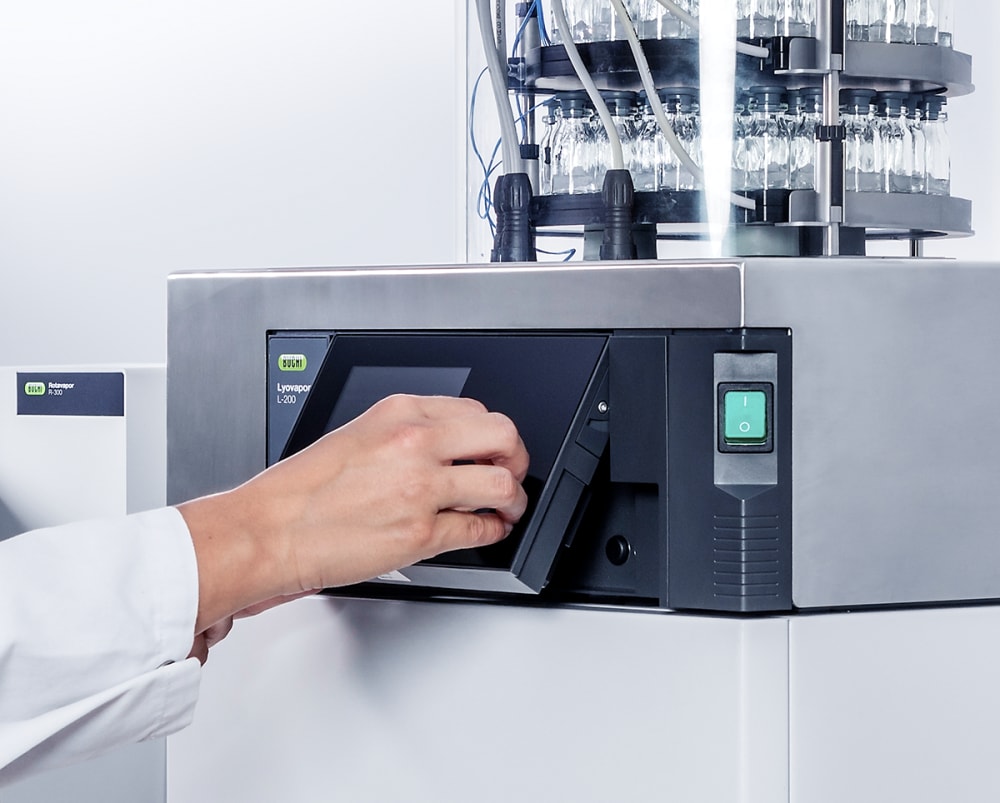

- 显示屏可调节，方便读取工艺参数。显示器位置可调，可置于冷冻干燥机正面或侧面，最佳适配您的需求。

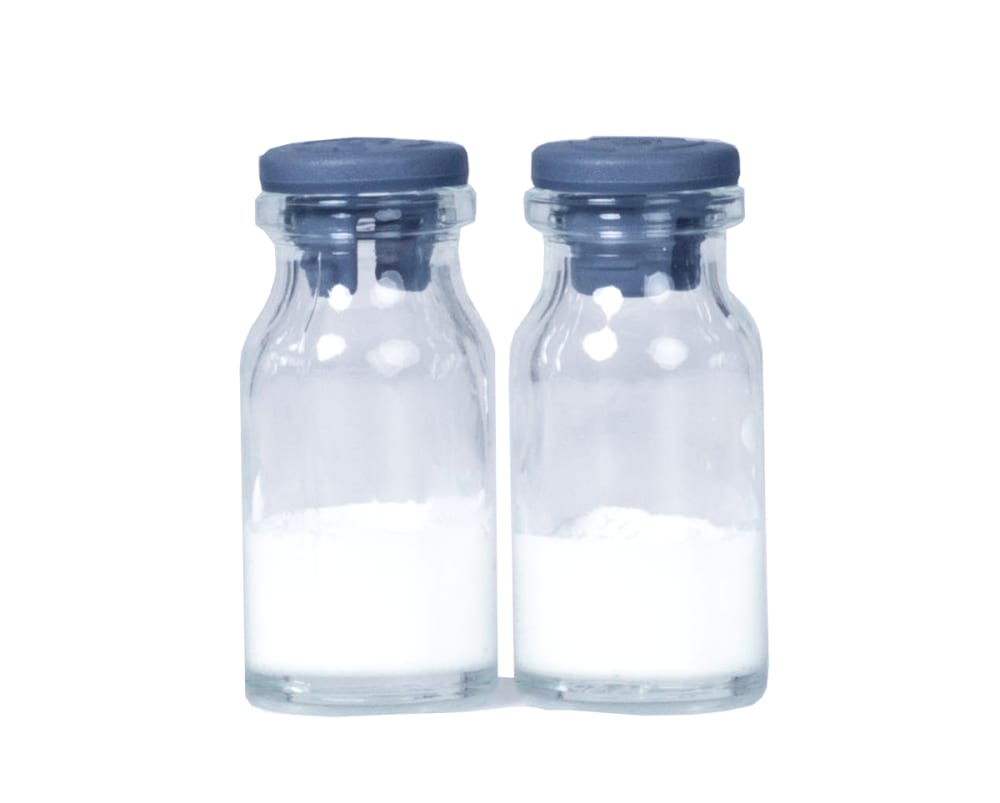

- 如果样品温度升高超过设定的破裂温度，或压力超出安全压力范围，样品保护状态即会激活。样品保护状态会降低压力并停止加热搁板，保护您的珍贵样品。

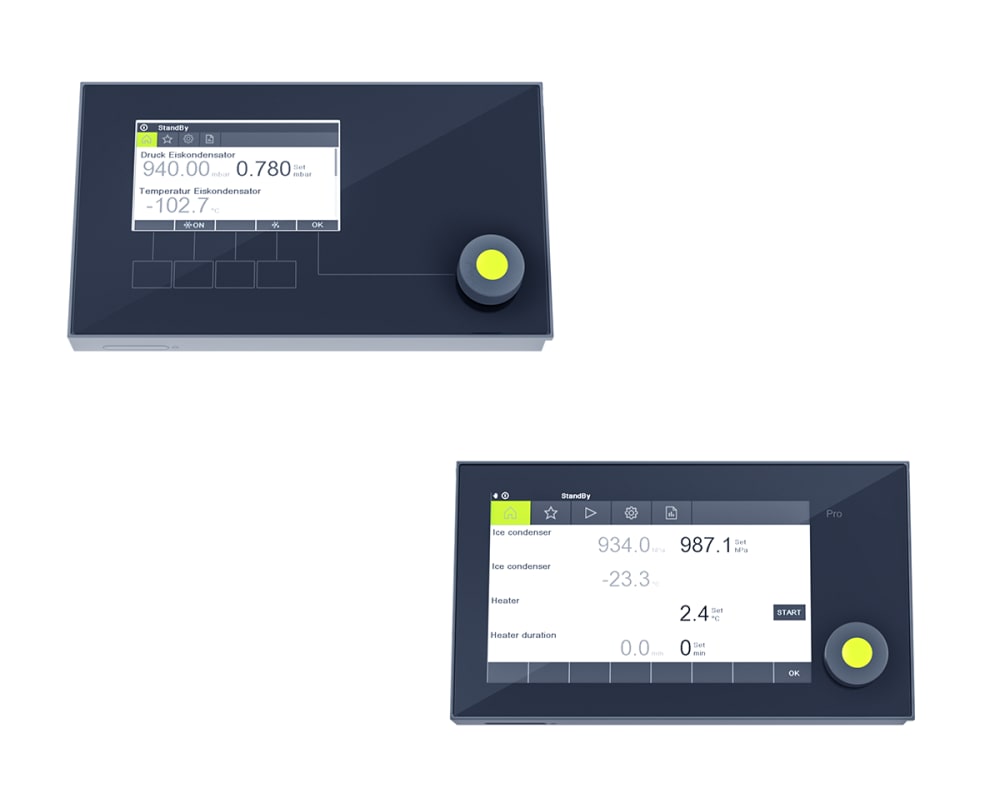

- 可连接附加界面，并放置在通风橱外，从外部控制冻干，实现额外流程适应性。可随时升级到界面 Interface Pro，以便在高级冷冻干燥机操作软件 Software 中工作。

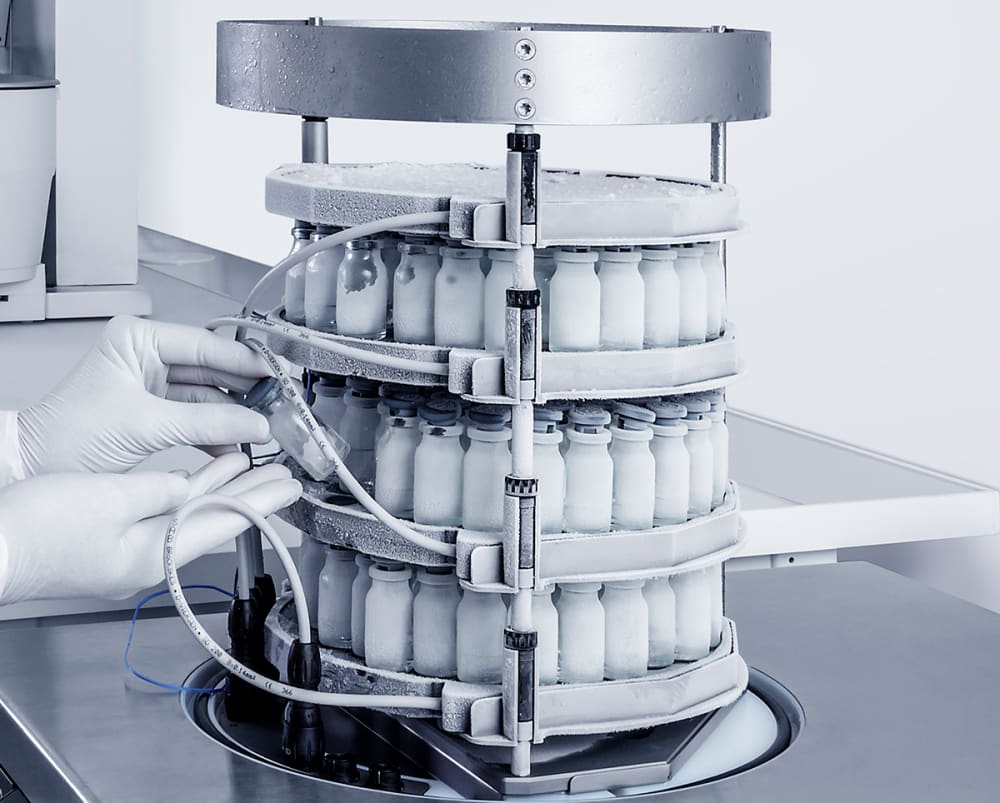

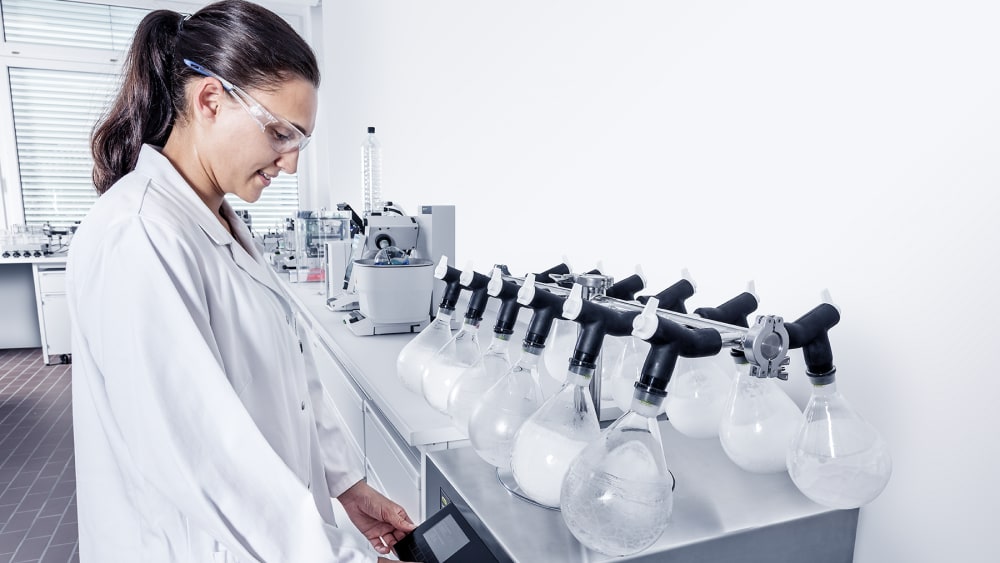

- 可根据您的应用需要调节搁板距离。可将两个歧管架连接在一起，增加冻干设置的灵活性。
Compare the 冷冻干燥机 L-200

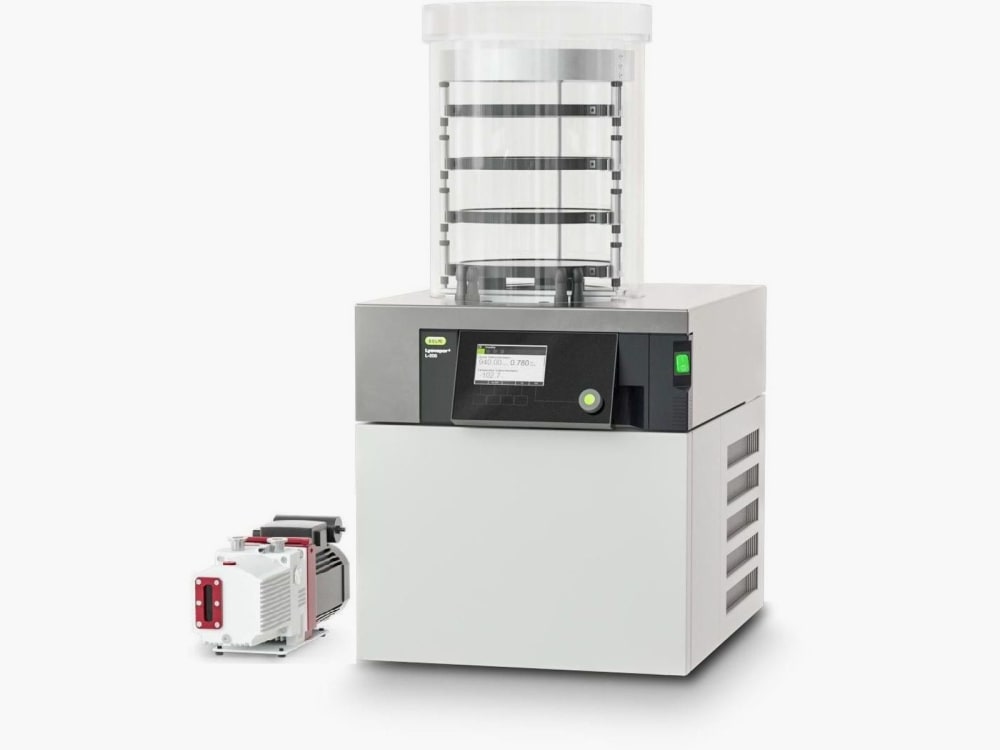

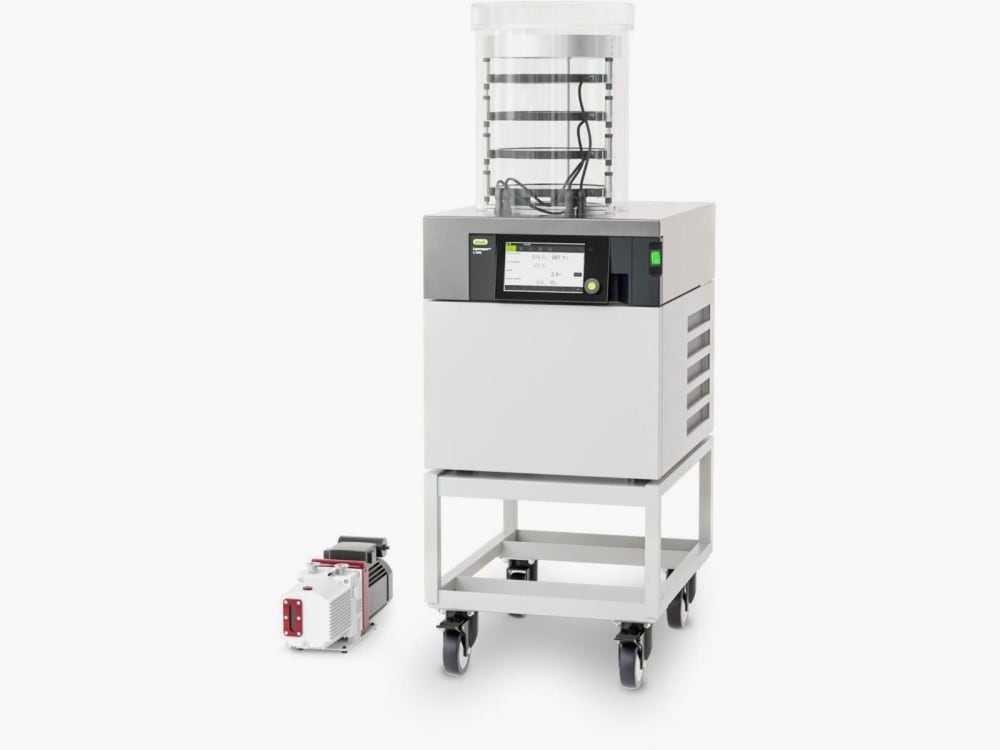

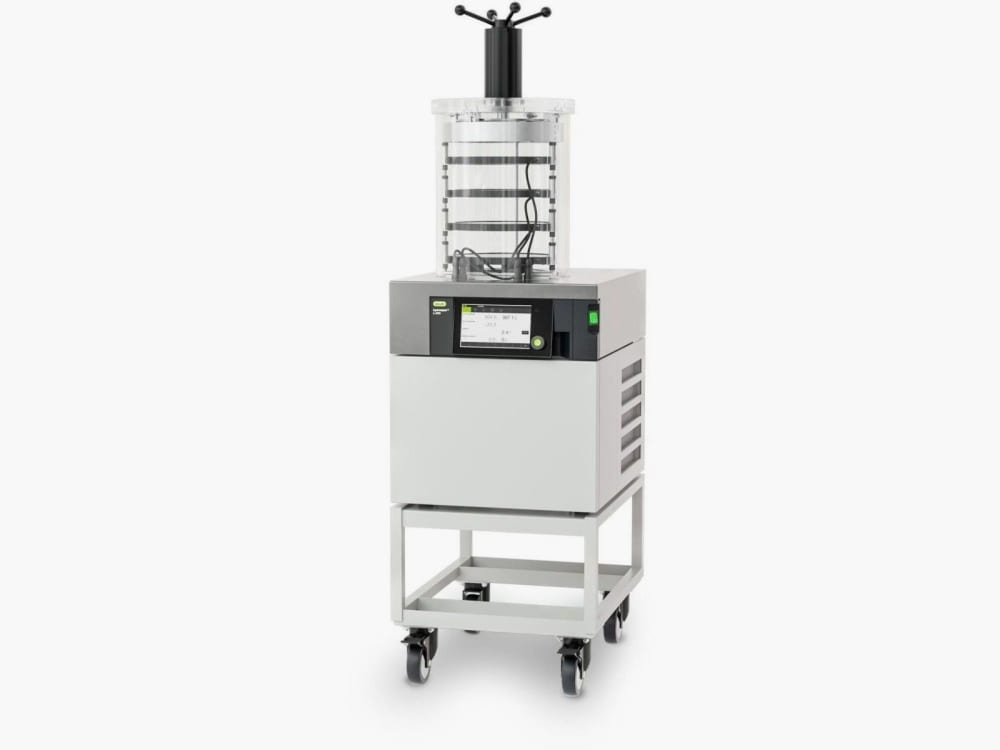

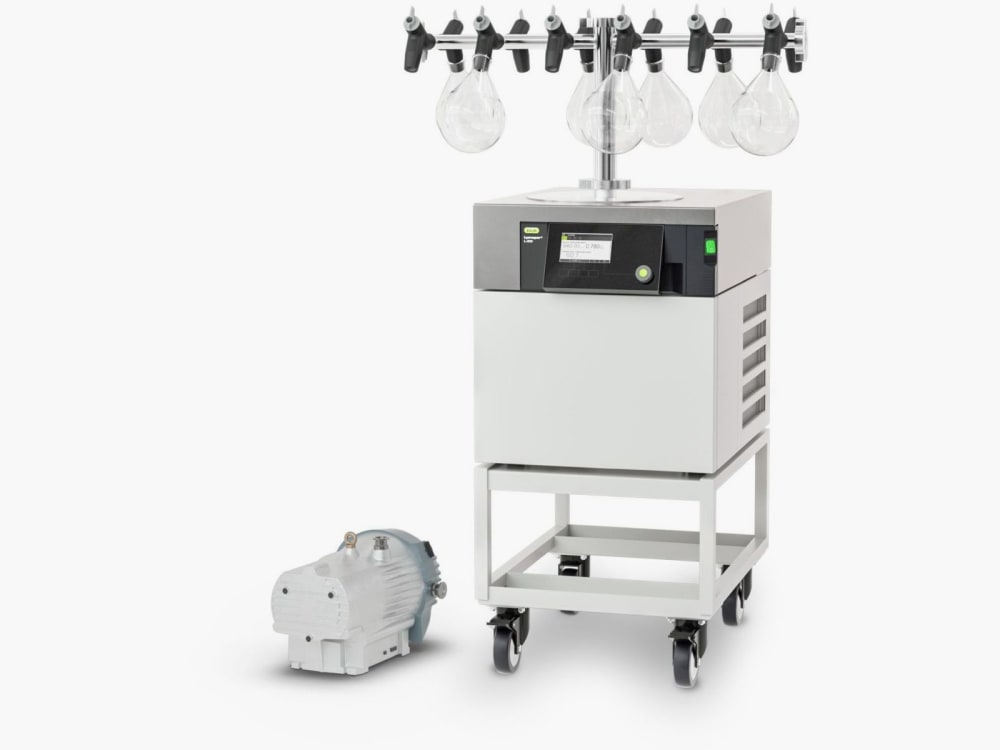

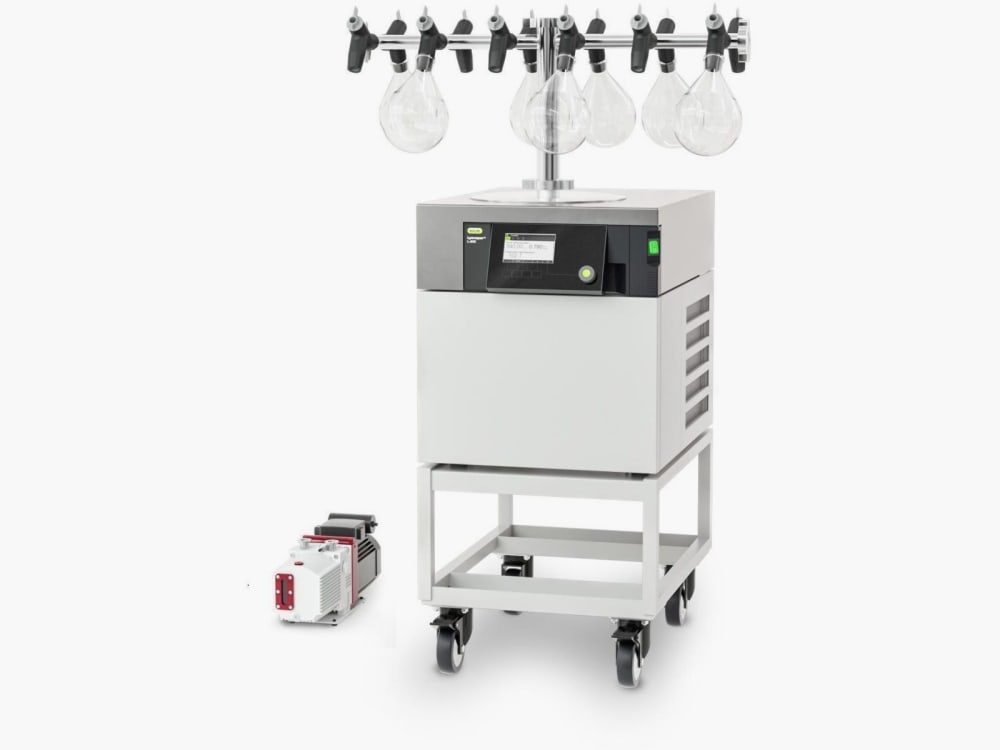

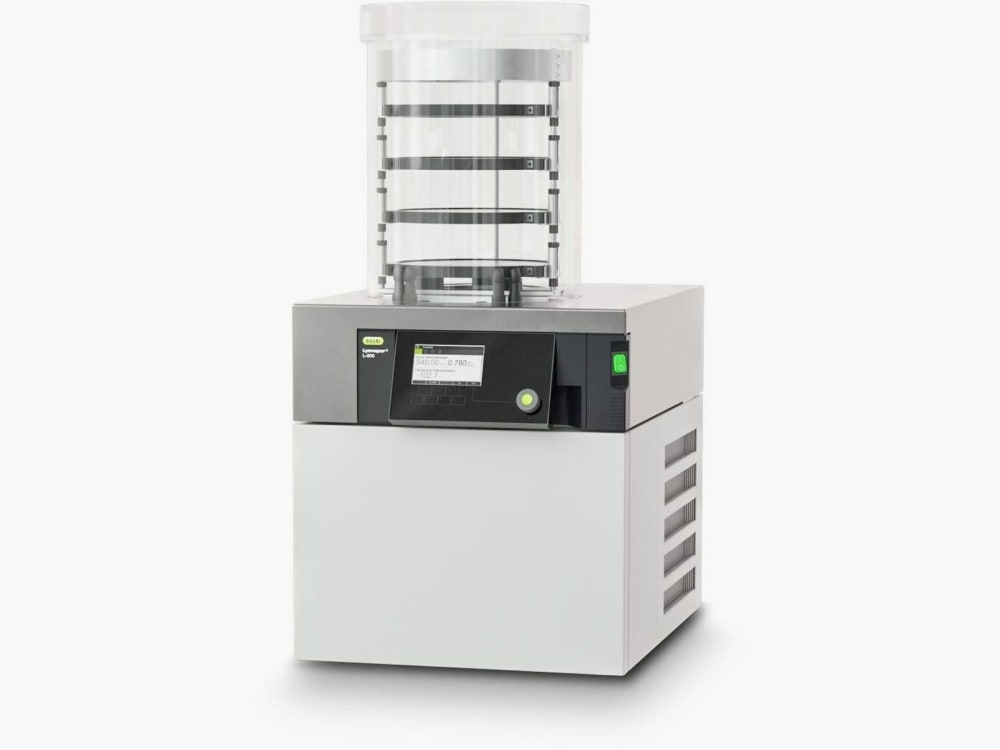

Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in

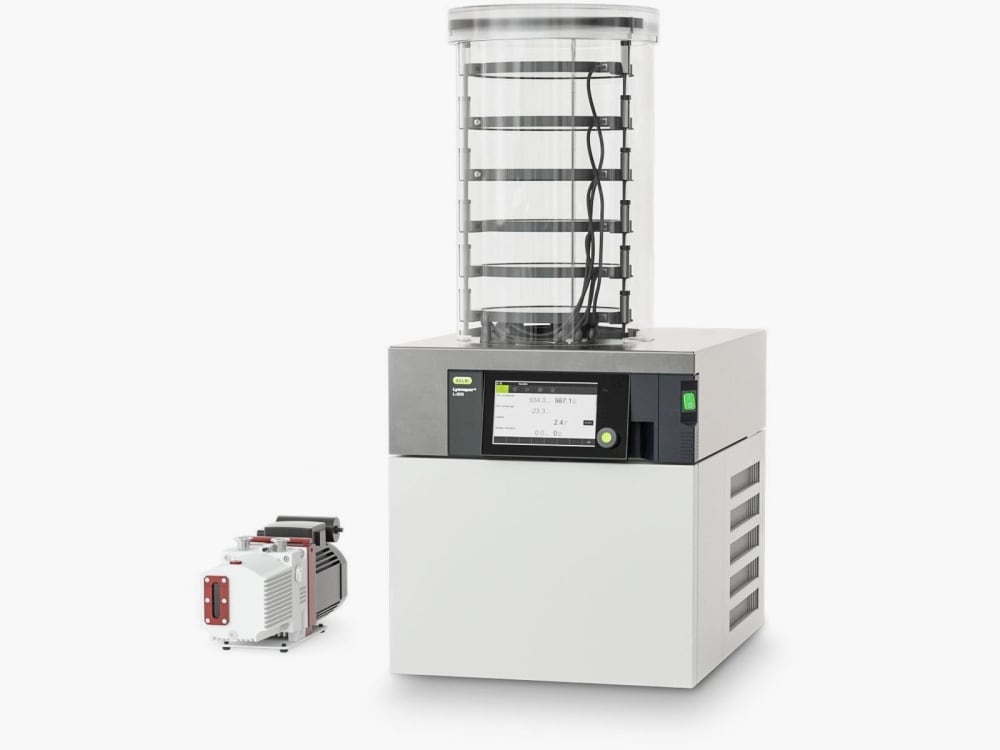

Lyovapor™ L-200 Pro
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度:up to 60°C
- 干燥架温度公差:± 1°C
- User interphase:7 in
Lyovapor™ L-200 Pro
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度:up to 60°C
- 干燥架温度公差:± 1°C
- User interphase:7 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Pro
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度:up to 60°C
- 干燥架温度公差:± 1°C
- User interphase:7 in
Lyovapor™ L-200 Pro
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度:up to 60°C
- 干燥架温度公差:± 1°C
- User interphase:7 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Classic
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度: -
- 干燥架温度公差: -
- User interphase:4.6 in
Lyovapor™ L-200 Pro
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度:up to 60°C
- 干燥架温度公差:± 1°C
- User interphase:7 in
Lyovapor™ L-200 Pro
- Condenser capacity:6 kg
- Lowest condenser temperature:-55 °C
- Condensing capacity:≤ 6 kg / 24 h at 20°C ambient temperature
- Minimum system vacuum:Typically ≤ 0.04 mbar
- 烘干架温度:up to 60°C
- 干燥架温度公差:± 1°C
- User interphase:7 in
“Lyovapor™ L-200冷冻干燥机是非常高质量的实验室冷冻干燥系统，应用范围广泛。冷冻干燥机的操作和各类不同样品的干燥都很简单明了。”Prof. Dr. Heiko A. Schiffter-Weinle - Department of Galenics, TH Köln/University of Applied Sciences
相关部件&附件

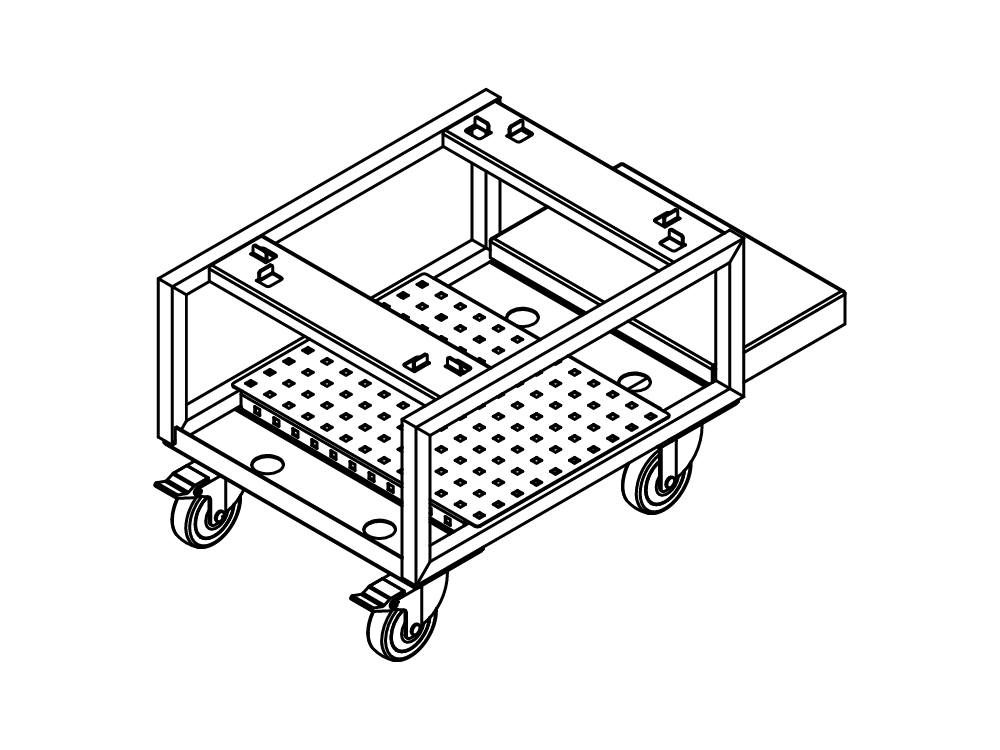

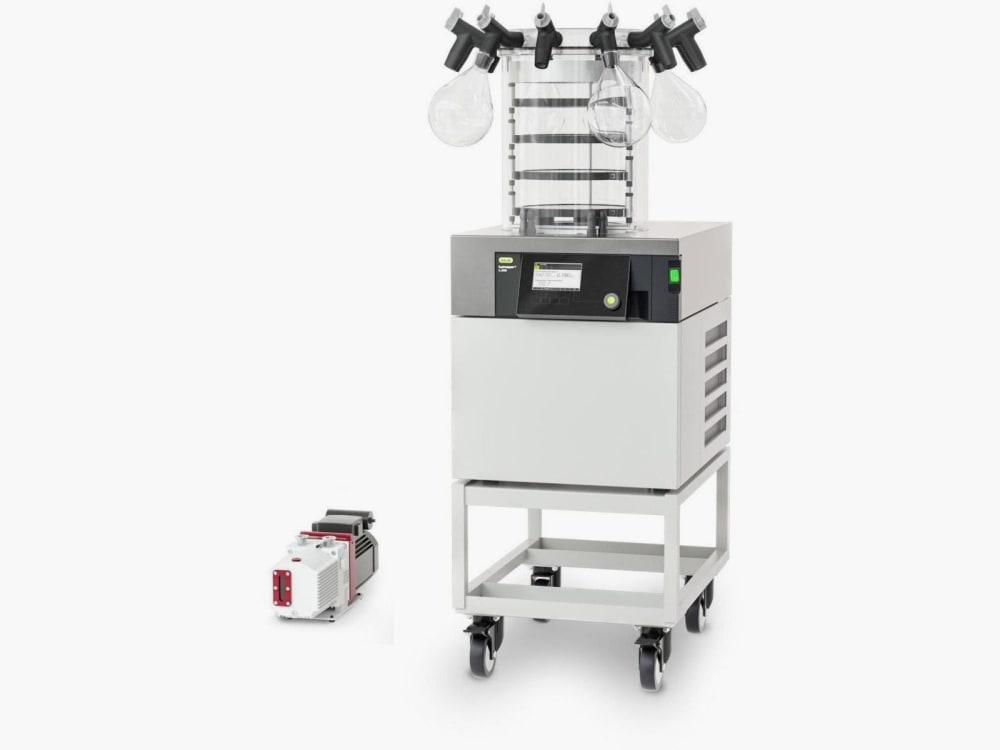

手推车
冷冻干燥机 L-200 小推车（由带涂层的不锈钢制成），在实验室中有安全空间。
Pirani / piezo 压力传感器
Pirani / piezo 压力传感器，带有线缆，可与 BUCHI 冷冻干燥机结合用于压力调节。
歧管阀
歧管阀，用于快速将样品连接至冷冻干燥机 L-200 或 L-300。由天然橡胶制成，带有 SJ 29/32 接头。
安瓿适配器
19 安瓿的适配器，用于将歧管阀直接连接到其中一个 BUCHI 冷冻干燥机。
干燥泵

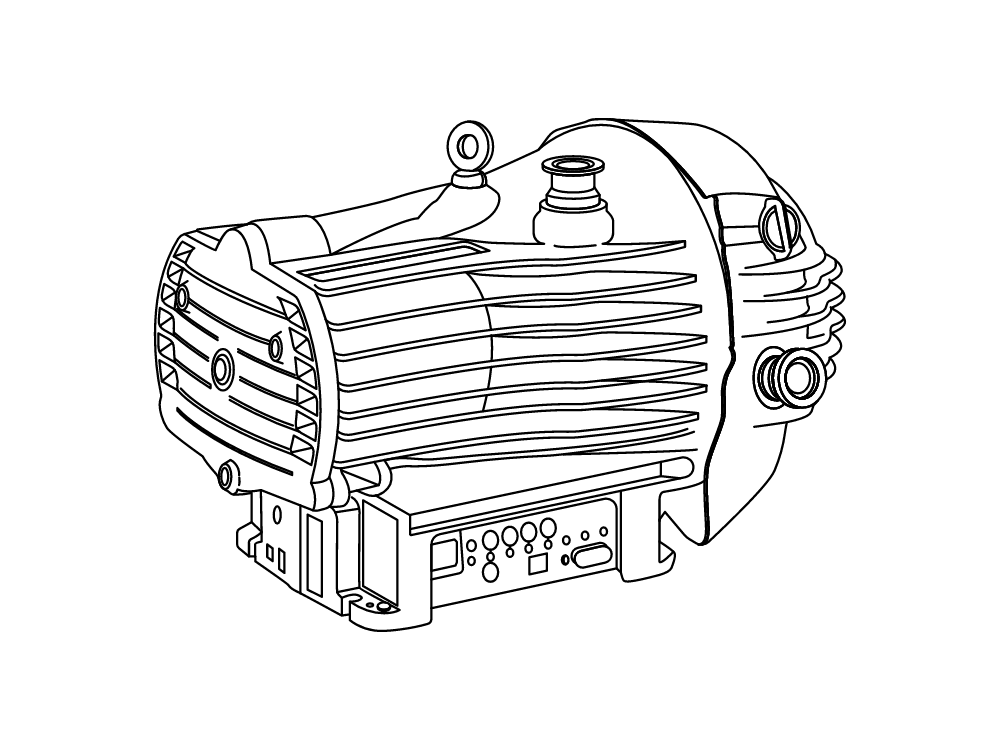

干式涡旋真空泵 (Edwards nXDS6iC)，具有高化学稳定性，在 50 Hz 和 60 Hz 下泵速可达到 6 m3/h，适用于冷冻干燥机 L-200。
干燥瓶
带橡胶帽的 800 mL 锥形瓶，用于直接连接歧管阀，包括 100 张 75 μm 滤纸和 2 个 O 形圈。与 BUCHI 冷冻干燥机配合使用。
干燥室 6 个货架
带顶盖和 6 个不可加热货架的丙烯酸玻璃干燥室，适用于 BUCHI 冷冻干燥机。
多歧管干燥架 24
使用包含 24 个歧管阀和基板的干燥架，最多可将 24 个样品连接到 BUCHI 冷冻干燥机。
干燥室 4 个货架
带顶盖和 4 个不可加热货架的丙烯酸玻璃干燥室，适用于 BUCHI 冷冻干燥机的配件。
干燥架歧管 12
使用包含 12 个歧管阀和基板的干燥架，最多可将 12 个样品连接到 BUCHI 冷冻干燥机。
干燥室 4 个货架和歧管
带顶盖、12 个歧管阀和 4 个不可加热货架的丙烯酸玻璃干燥室，适用于 BUCHI 冷冻干燥机。
带塞子的干燥室

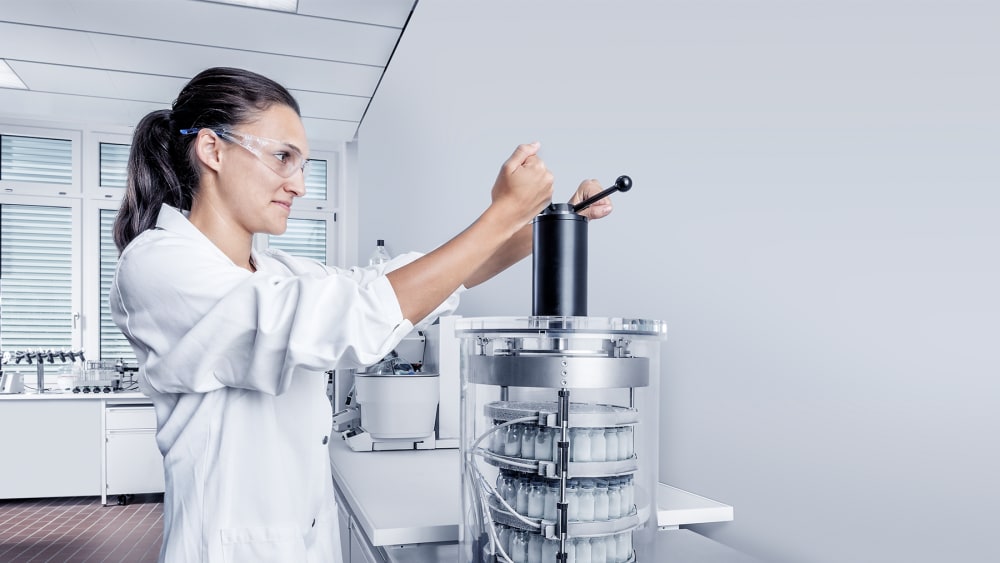

此干燥室带有塞子，适用于 BUCHI 冷冻干燥机专业款的配件，包含塞子盖、4 个可加热货架和 4 个样品温度传感器。此配件有助于您最大限度地控制干燥过程。
下载
- Operation Manual Lyovapor L-200 / L-200 Pro zh(pdf)
- Technical Data Sheet Lyovapor L-200(pdf)
- Product Brochure Lyovapor L-200 zh(pdf)
- Solution Brochure Freeze Drying zh(pdf)
- Product Brochure Pharma and Chemistry zh(pdf)
相关的课程和培训
Enhance Your Freeze-Drying Process: Best Practices for Solvent Mixtures
Determine the suitable method development for your chosen solvent mixture can help you improve your freeze-drying processes. Let's learn this together.
Analytical methodology to quantify compostable plastics in compost
Discover more about polymer biodegradation in soil.
Lyophilization Process Development for Human Breast Milk
Register for our free webinar on Human breast milk lyophilization process, where our experts will guide you through the lyophilization process for breast milk preservation.
How to save time in freeze drying
Learn about efficient approaches for endpoint determination and how to avoid misconceptions in freeze drying.
Freeze Drying for Covid-19 PCR based Diagnostic Kits
Learn how to use freeze drying to produce room-temperature-stable PCR diagnostic kits. These diagnostic kits are suitable for use and distribution in regions with limited access to efficient cold-chain management and storage.
应用
从标准应用到无限制冰能力
Education
For a wide range of applications in academic education: Complete temperature sensitive drying.
Biotechnology
Used in biotechnology development for drying biologically active products: Drying and stabilization of small quantities in micro titer plates or small flasks.
Environmental Analysis
Required for sample preparation and stabilization to monitor environmental pollution: During storage of samples in order to destroy micro-organisms. Drying, e.g. for SpeedExtractor.
Chemical
For gentle and lossless drying in QC and R&D laboratories: Drying of most minute quantities in micro titer plates as well as small and large flasks or bulk drying is possible.
Food and Natural Extracts
Used for developing function-al food and analytics: Solvent is removed during, drying without destroying, the natural substances such as proteins, minerals or vitamins.
Pharmaceutical
For various applications in QC as well as laboratory scale synthesis and formulation in R&D departments: Drying of peptides and proteins of amorphous and crystalline solutions.
