SpeedExtractor E-914 / E-916
Combine maximum speed and throughput
Combine maximal speed and throughput with SpeedExtractor E-914 / E-916, your best solution for Pressurized Solvent Extraction (PSE). Increase productivity by processing more samples in parallel, easily loading samples and quickly collecting extracts.
Features

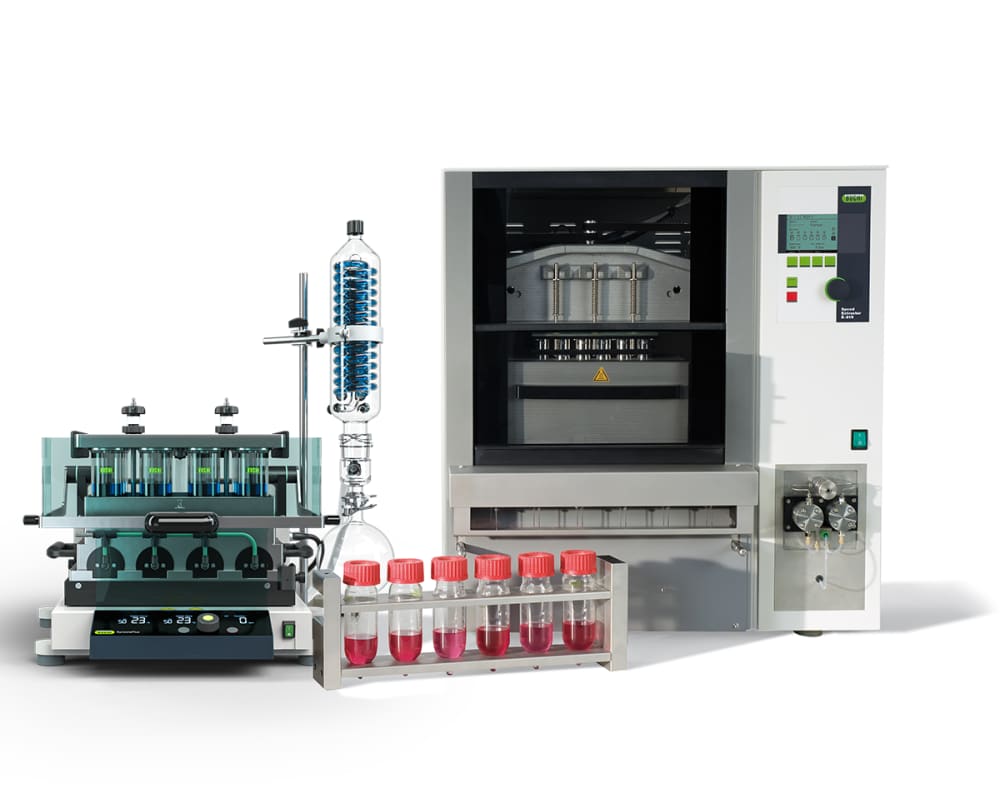

Significantly increase throughtput with the concerted parallel extraction and parallel evaporation. Full compatibility of the SpeedExtractor collection glassware with SyncorePlus Analyst and Multivapor™.
The fail-safe extraction cells seal automatically using a unique sealing principle to guarantee reproducible results.
The operation of the SpeedExtractor E-914 / E-916 is easy and intuitive. Apply an established method at the push of a button and extract up to 6 samples simultaneously.
Extract your sample with optimized methods thanks to the flexible process parameters (30 - 200 °C; 50 - 150 bar) and the different extraction cells (E-916: 10, 20, 40 mL; E-916XL: 60 mL; E-914: 10, 20, 40, 80, 120 mL).
Manage and store methods, obtain graphical visualization and documentation with the SpeedExtractorRecord™ Software.
The wide temperature and pressure range, sample volumes from 1 to 120 mL and the integrated mixer for up to 4 solvents allow to reliably extract complex matrices with high recovery of the analytes.
Compare the SpeedExtractor E-914 / E-916
SpeedExtractor E-916
- Number of samples:6
- Sample volume:10-40 ml
- Maximum number of solvent ports:4
- Maximum temperature:200 °C
- Minimum temperature:30 °C
- Maximum pressure:150 Bar
- Minimum pressure:50 Bar
SpeedExtractor E-916
- Number of samples:6
- Sample volume:10-40 ml
- Maximum number of solvent ports: -
- Maximum temperature:200 °C
- Minimum temperature:30 °C
- Maximum pressure:150 Bar
- Minimum pressure:50 Bar
SpeedExtractor E-914
- Number of samples:4
- Sample volume:10-120 ml
- Maximum number of solvent ports:4
- Maximum temperature:200 °C
- Minimum temperature:30 °C
- Maximum pressure:150 Bar
- Minimum pressure:50 Bar
SpeedExtractor E-914
- Number of samples:4
- Sample volume:10-120 ml
- Maximum number of solvent ports: -
- Maximum temperature:200 °C
- Minimum temperature:30 °C
- Maximum pressure:150 Bar
- Minimum pressure:50 Bar
SpeedExtractor E-916 XL
- Number of samples:6
- Sample volume:60 ml
- Maximum number of solvent ports:2
- Maximum temperature:200 °C
- Minimum temperature:30 °C
- Maximum pressure:150 Bar
- Minimum pressure:50 Bar
SpeedExtractor E-916 XL
- Number of samples:6
- Sample volume:60 ml
- Maximum number of solvent ports: -
- Maximum temperature:200 °C
- Minimum temperature:30 °C
- Maximum pressure:150 Bar
- Minimum pressure:50 Bar
Fish tissue has always been our most difficult matrix to work with and the SpeedExtractor has made it a breeze.Eric Scott, Environmental Scientist - Kentucky Department of Environmental Protection, USA
The SpeedExtractor in combination with SyncorePlus makes day-to-day work in the laboratory easier due to unmatched ease of use and efficiency. The parallel design of both instruments allows for fast analysis during a working day. It is the key for cost-efficient analytical methods at a high quality level, performed in a short time.Dr. Saverio Iozza, Team Leader - TESTEX AG
Related Parts & Accessories

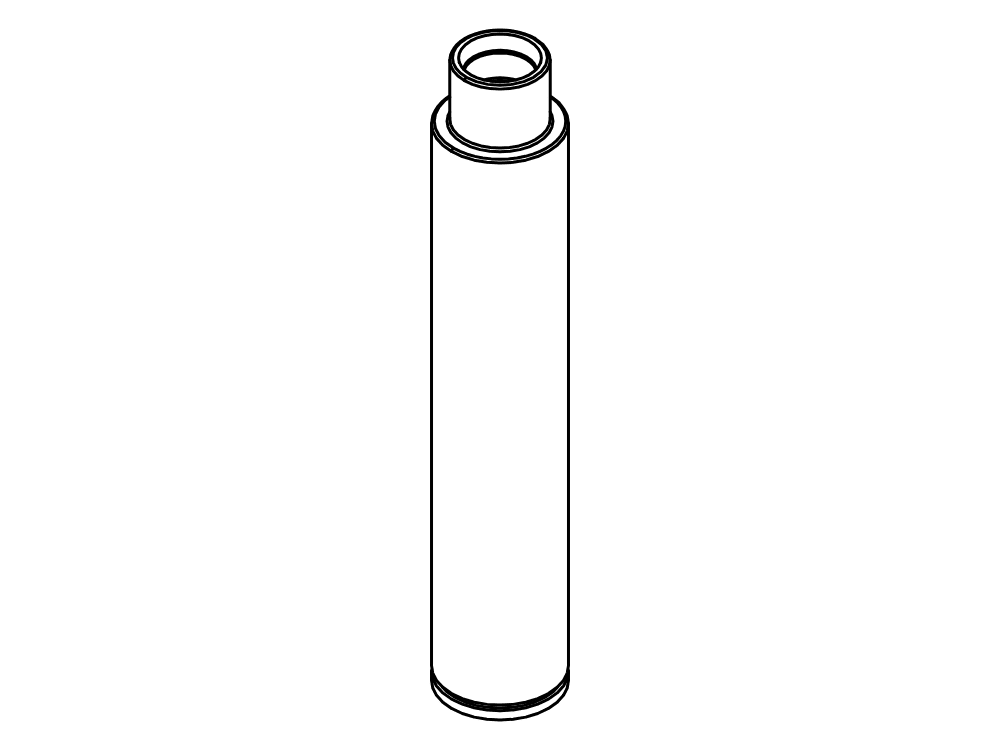

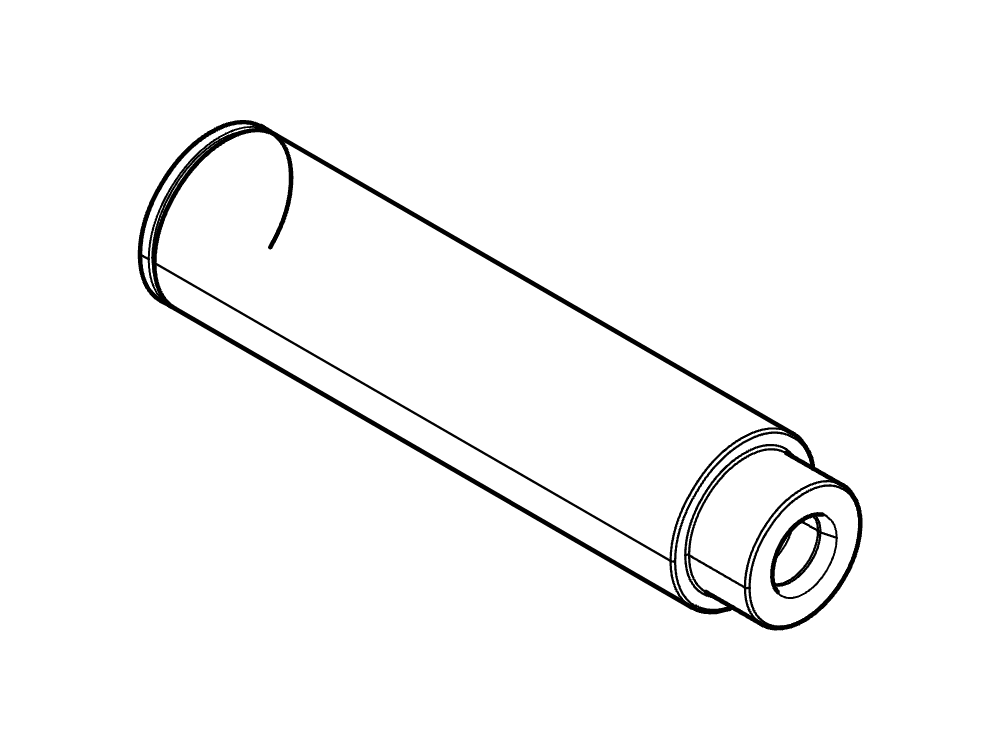

Extraction cell 80 mL for E-914 Stainless steel, Ø 40 mm
Unique design of extraction cells for the SpeedExtractor E-914 allows for ease of sample loading and cell assembly.

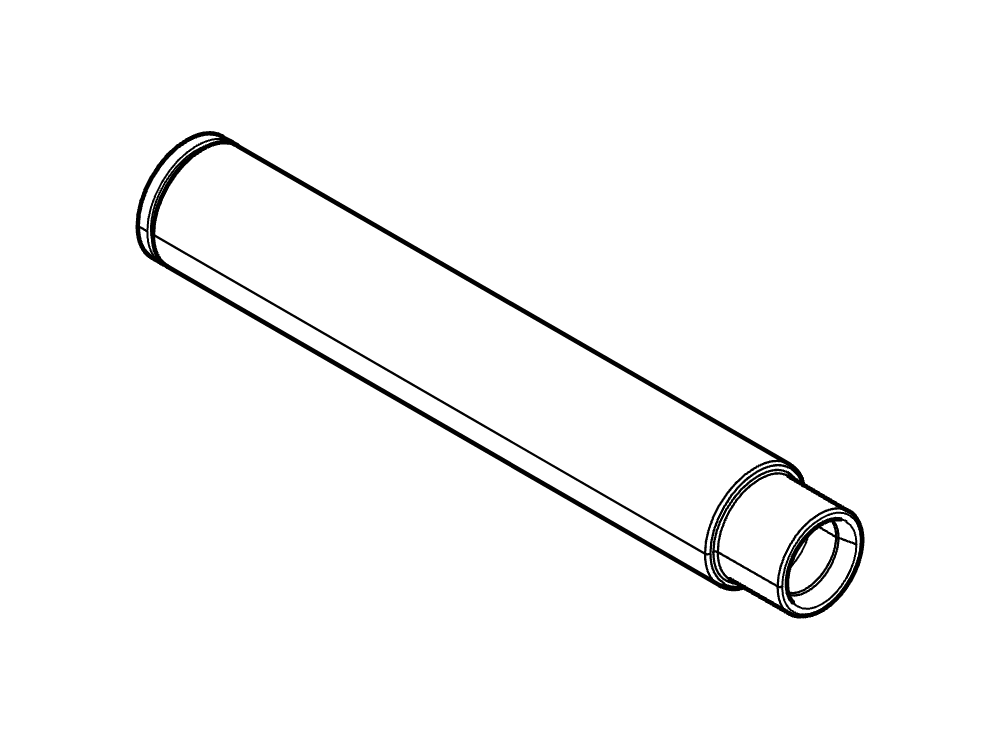

Extraction cell 20 mL for E-916 Stainless steel, Ø 26 mm
Unique design of extraction cells for the SpeedExtractor E-916 allows for ease of sample loading and cell assembly .

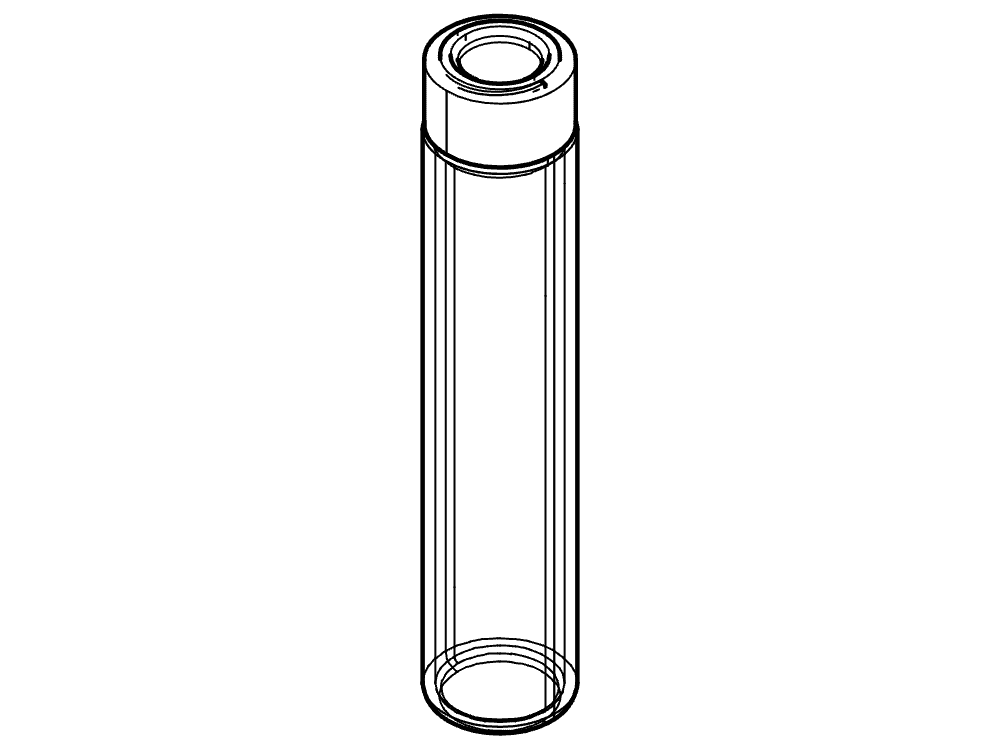

Collection vials with cap and septa, 60 mL, 72 pcs.
Glass with thread for 10-425, septa silicone coated with PTFECombine the SpeedExtractor with the collection vessel with a volume of 60 mL. Evaporate the extract to dryness with SyncorePlus Polyvap R-24 or Multivapor™ P-12
Collection bottle with cap for SpeedExtractor, set of 6 pcs. Glass, 240 mL, PTFE/silicon septa
Combine your SpeedExtractor with a collection bottle with a volume of 240 mL. Evaporate the extract to dryness using the Multivapor™ P-6.

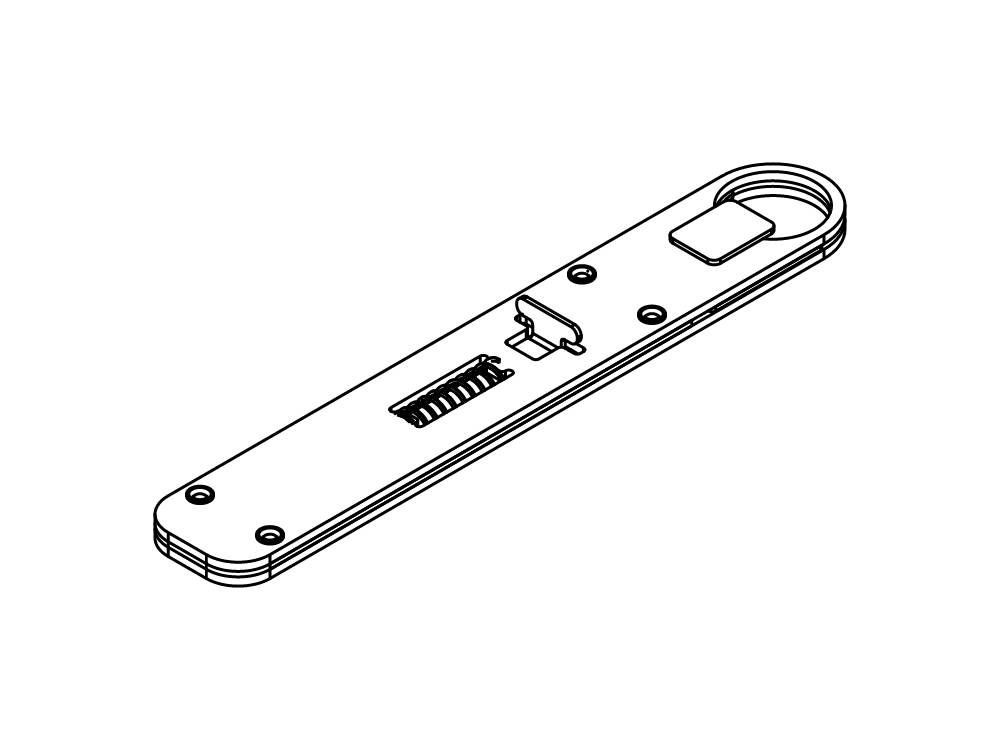

Gripper for extraction cells E-916 Stainless steel, Ø 26 mm
The gripper is used to remove the hot extraction cells from the heating block once the extraction is finished. It fits to all E-916 cells.

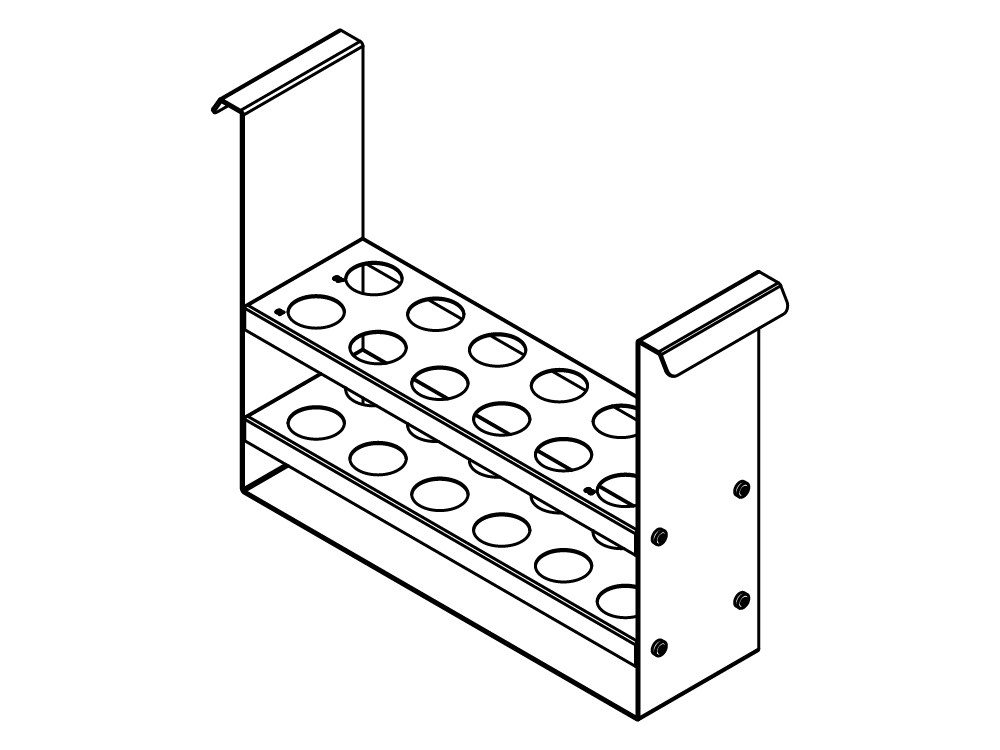

Carrier for extraction cells for E-916 and 60 mL vials Stainless steel, for Ø 29 mm vessels
Carry 6 SpeedExtractor extraction cells at once.
Downloads
- Operation Manual SpeedExtractor E-914 / E-916 / E-916XL en(pdf)
- Operation Manual SpeedExtractor Record en(pdf)
- Technical Data Sheet SpeedExtractor E-916 / E-914(pdf)
- Product Brochure SpeedExtractor E-914 / E-916 en(pdf)
Related Instruments
UniversalExtractor E-800
The UniversalExtractor E-800 is powerful and perfect for demanding extraction tasks. Distinct extraction positions enable individual process control and simultaneous operation of 6 different extraction methods with high speed and reproducibility.
SyncorePlus
Our parallel evaporation instruments offer synchronized sample solutions in two configurations: SyncorePlus Analyst lets you evaporate samples to a specified volume as a pre-analytical step. SyncorePlus Polyvap enables the highest sample throughput.
Multivapor™
Perform efficient evaporation for multiple samples with Multivapor P-6 / P-12. Speed up your sample evaporation by processing a number of samples simultaneously. With its ease of use, the Multivapor™ maximizes the efficiency of your process.
Related Courses & Trainings
Pressurized solvent extraction in drug discovery and phytomedicine
Learn how to apply pressurized solvent extraction to extract compounds from natural products for drug discovery, phytomedical and metabolics-based investigations. Join panelist, Mr. P.S.F. Alberts, University of Pretoria, South Africa, as he shares b
How to use continuous extraction for quick and compliant fat determination
Discover best practice approaches for obtaining fast, accurate and reliable results while remaining compliant with standard methods.
Applications
Streamline the workflow of your sample preparation
Food
Crude fat and total fat (after acid hydrolysis) determination in food. For labelling, as sample preparation for fatty acid profile or residue and contaminant analysis, reference method for NIR calibrations.
Feed
Crude fat and total fat determination (after acid hydrolysis) in feed and pet food. For labelling, as sample preparation for fatty acid profile or residue and contaminant analysis, reference method for NIR calibrations.
Environmental Analysis
Extraction as sample preparation prior to analysis of persistent organic pollutants (POPs), contaminants and residues from soil, sediments, air filters and waste samples.
Chemicals
Extraction of materials and chemicals for QC as well as for R&D. Determination of total extractables, contaminants and additives.
Pharmaceutical
Extraction as sample preparation for the research of active compounds in plants (for medical or cosmetic use).
Extraction Academia
For a wide range of applications in the scientific research as well as for academic education.
