NIR-Online X-Sential™
製造プロセスのコントロールに必要なオンライン近赤外分析計
製造工程におけるバラツキを抑えるためには、水分、脂肪、たんぱく質などの基本的なパラメータをリアルタイムでモニタリングすることが重要となります。X-Sentialは費用対効果が高く、製造現場のニーズに対応するセンサーとして設計・開発されました。
特徴

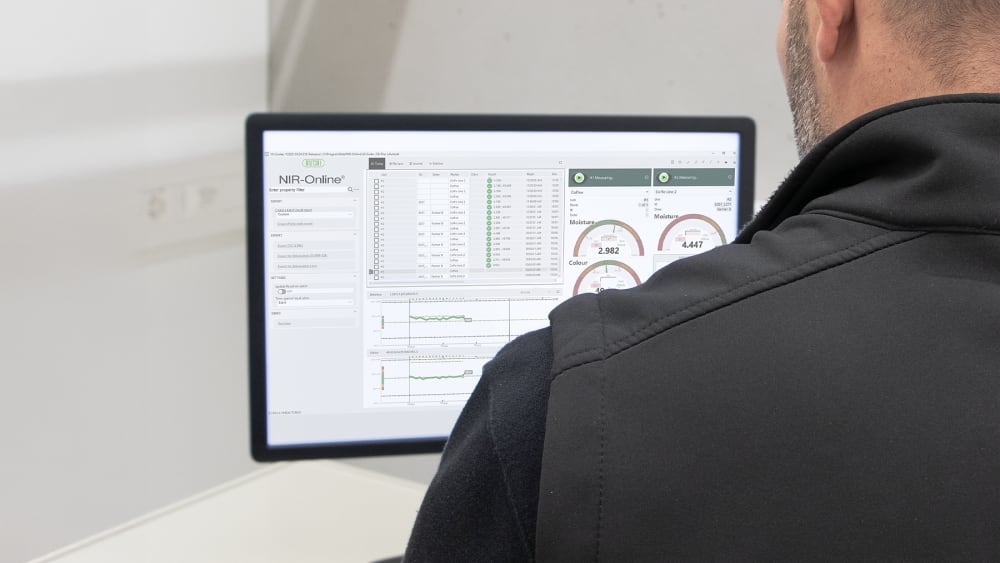

Most convenient software tool available on the market for automated calibration development and maintenance. Valuable calibration data remains with you at all times - no need to outsource to external agencies. Simply enter the new reference value into the software and confirm via a simple click. No export/import functions, no manual calibration routines or extensive background in chemometrics are required. Eliminate the need to develop extensive in-house calibrations or purchase calibration data bases.
Reliable measurements for product temperature up to 70°C
Water chiller for product temperatures up to 130°C
Air nozzle that enables analyzer operation in environments with temperatures of up to 55°C (voids ATEX).
Safe operation of your NIR device in harsh environments, certified with the highest testing criteria (IP69/X9K). Maximum safety through ingress protection and fulfillment of hygienic requirements for all materials in contact with the product.
Compare the NIR-Online X-Sential™
NIR-Online X-Three V3 Gas
- Spectral Range:350 - 1700 nm
- Measuring Time NIR:50 spectra/s
- Illumination Spot Diameter:40 mm
- Measuring Distance:0 - 20 mm
- Resolution NIR:256 Pixels
- IP Class:ip66_ip66k
- ATEX:Dust, Gas
NIR-Online X-Beam002
- Spectral Range:(350) 900 – 1700 nm
- Measuring Time NIR:50 spectra/s
- Illumination Spot Diameter:100 mm
- Measuring Distance:20 - 200 mm
- Resolution NIR: -
- IP Class:ip66_ip66k
NIR-Online X-Beam002
- Spectral Range:(350) 900 – 1700 nm
- Measuring Time NIR:50 spectra/s
- Illumination Spot Diameter:100 mm
- Measuring Distance:20 - 200 mm
- Resolution NIR:256 Pixels
- IP Class:ip66_ip66k
- ATEX:Dust, Gas
X-Sential™
- Spectral Range:(350) 900 - 1700 nm
- Measuring Time NIR:20 spectra/s
- Illumination Spot Diameter:40 mm
- Measuring Distance:0 - 20 mm
- Resolution NIR:128 Pixels
- IP Class:ip69
- ATEX:-
NIR-Online X-Three V3 Gas
- Spectral Range:350 - 1700 nm
- Measuring Time NIR:50 spectra/s
- Illumination Spot Diameter:40 mm
- Measuring Distance:0 - 20 mm
- Resolution NIR:256 Pixels
- IP Class:ip66_ip66k
- ATEX:Dust, Gas
ダウンロード
- Operation Manual X-Sential ja(pdf)
- Technical Data Sheet X-Sential™(pdf)
- Product Brochure X-Sential™ ja(pdf)
- Product Solutions NIR-Online ja(pdf)
- NIR-Online chemical solutions ja(pdf)
